Aluminium Foil Embossing Rewinding Machine
Share us

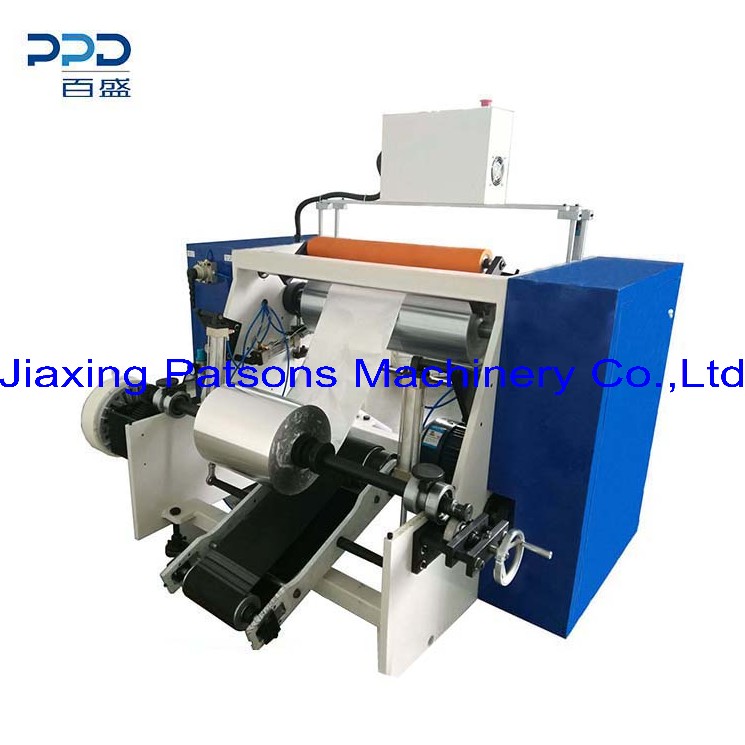

Aluminium Foil Embossing Rewinding Machine

PPD-AFE450

Send Inquiry

Description

Aluminium foil embossing rewining machine is semi auto model for 2 shaft rewinding of aluminium foil roll,aluminium foil embossing roll.
The design speed is at 600meter per minute,it works with PLC program and colorful touch screen for easy operation.

Main technical data:
Material:Aluminium foil/cling film
Mother roll width:200/300/450mm
Mother roll inner diameter:3/6inch
Mother roll outer diameter:600mm max
Rewind roll width:max 450mm
Rewind roll inner diameter:32/35/38/40mm
Rewind roll length setting:2-300m
Design speed:600m/min
Voltage:220/380/415v option
Pneumatic supply:0.3Mpa
NOTE:Different sizes can be customized.


Aluminium foil rewinder, Kitchen foil rewinder,
